One Stop Shop Scheme, Mayo ‘A2’ Case Study
KORE Retrofit case studies offer an inside look at energy upgrade projects in real-world applications. This retrofit was part of the 2023 One Stop Shop Scheme, coordinated by KORE Retrofit and supported by the Sustainable Energy Authority of Ireland (SEAI).
Fully Managed and Coordinated by
Supported By
Case Study Details
Project Name: One Stop Shop Whole Home Upgrade in Kiltimagh, Co. Mayo
Measures Undertaken: Internal wall insulation, attic insulation, floor insulation with underfloor heating, mechanical heat recovery ventilation, air-to-water heat pump, aluclad triple glazed windows and one aluclad ultratech door.
Contractor: Mick Regan Construction
Project Coordinator: KORE Retrofit Ltd.
KORE Project Manager: Seamus Leahy
“KORE Retrofit made the whole retrofit process so simple. They were very accommodating, and were able to facilitate our extension work within the overall One Stop Shop process.
The difference in the comfort level in the house is astounding, not to mention the improved indoor air quality and lower bills. Always available to problem-solve, competent and professional, every single member of the KORE team went out of their way to help. A dream project team.”
Every single family member who has visited the house post-works is blown away by the project, so thanks again!
”
Achieving A2
With a Pre-BER (Building Energy Rating) of G, and a post-BER rating of A2, this energy upgrade project included in the 2023 One Stop Shop Scheme is now a modern, energy-efficient, comfortable and healthy home.
This G-Rated home had a primary energy rating of 584.9kWh/m2/yr, and 189.76 kg/CO2/m2/yr carbon dioxide emissions indicator.
The post works final results came in at 49.87kWh/m2/yr for primary energy use and 6.38 kg/CO2/m2/yr for the carbon dioxide emissions indicator, resulting in an overall energy rating of A2.
Upgrading Ireland’s Housing Stock

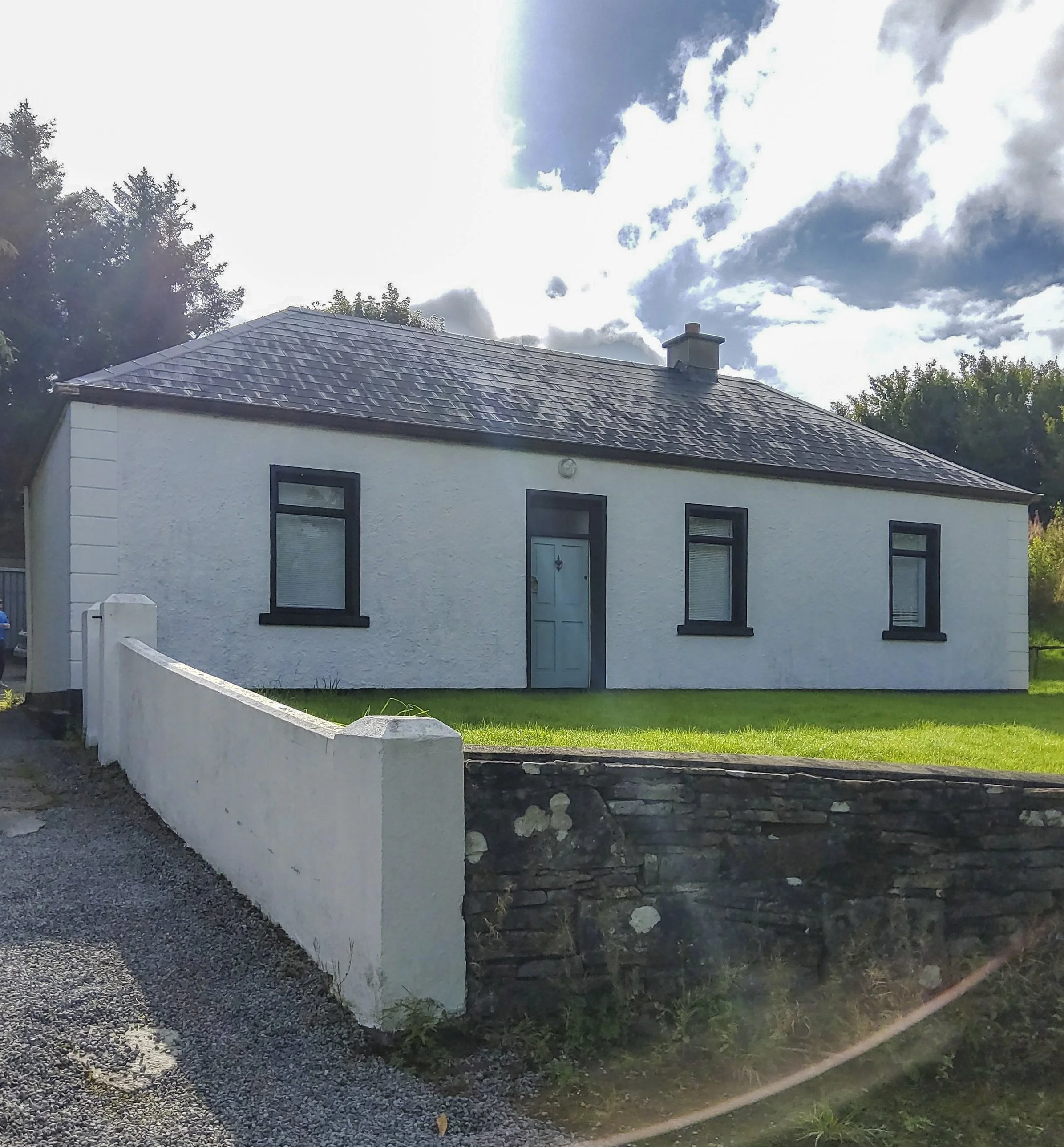

Located in Co. Mayo this 1908 home was included in the 2023 One Stop Shop Scheme, part-funded by SEAI, to undergo whole home energy-efficiency upgrade works. The grant provided by SEAI helped fund the energy efficiency upgrades including wall, floor and attic insulation, heat pump, mechanical heat recovery ventilation, and new triple glazed windows & doors. KORE Retrofit Ltd. provided project management services, design solutions, technical expertise, quality control services and full grant administration.
Breaking down the details
Wall Insulation
100mm of internal wall insulation was installed on the existing building. 150mm WALLTITE pumped cavity wall insulation (100mm outer block, 100mm inner block) was installed on the new build extension. Best practice and high-quality workmanship ensured that repeating and non-repeating thermal bridges were eliminated or kept to a minimum.
Attic Insulation
150mm of mineral wool insulation was installed between the rafters & joists, and a 62.5mm Polyiso insulated slab under the joists. The trap door was insulated, with pipe lagging and a new cold water tank jacket also installed.
Floor Insulation
150mm of floor insulation was installed, with 75mm screed with underfloor heating. Completing a whole insulation approach for wall, roof and floor applications, eliminating thermal bridging, and ensuring heat loss is kept to a minimum.
Heating System

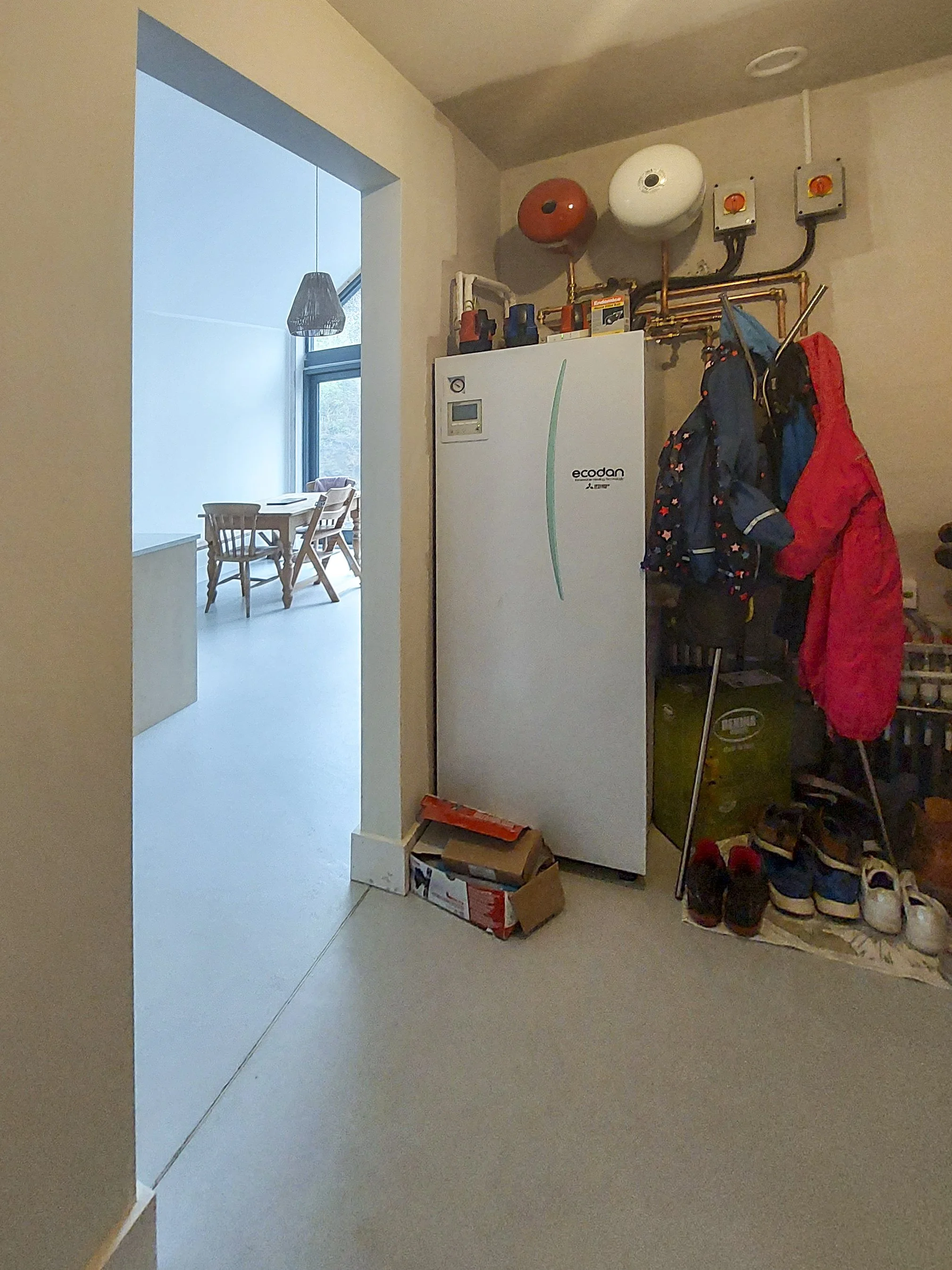

KORE installed a 6kW Mitsubishi Electric Eco Dan air-to-water heat pump, providing heating via a renewable source, eliminating the use of fossil fuels, while decreasing carbon emissions. Underfloor heating was installed throughout the house, with new heating controls.
Windows and Doors

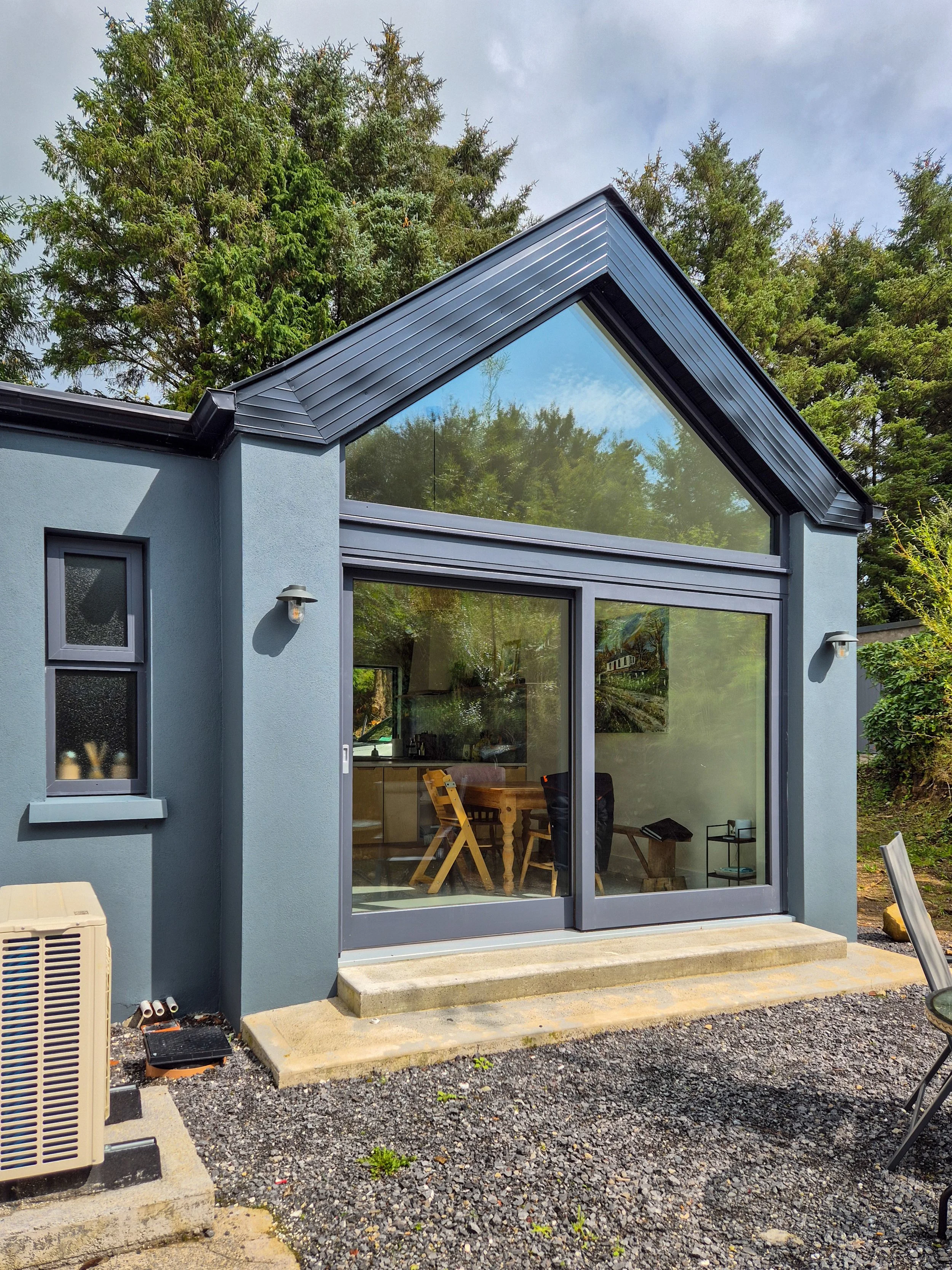

Passive Aluclad triple glazed windows were installed in the existing home, and new build. An aluclad ultratech front door was also installed. Windows and door supplied by Munster Joinery.
Ventilation
Vent Axia mechanical heat recovery ventilation was installed to provide superior indoor air quality that adjusts the rate of air exchange based on needs, including advanced settings for wet rooms such as the kitchen and bathroom.
For more information on being included in the One Stop Shop Scheme, please visit our whole home energy grant page for further detail.
Seamus Leahy, Project Manager
Seamus Leahy has worked as a project manager with KORE Retrofit since 2023, with previous experience working as an project manager for over two decades. With a background in property management, facilities & construction, Seamus is responsible for KORE Retrofit’s One Stop Shop scheme. For more information on the scheme, please contact the sales team on +353 49 437 4002.
